Description

Electronic board for 12V or 24V sliding gate openers, featuring SOFT STOP.
Compatible with SLIDE and Tower gate openers.
Stops on magnetic limits detection.

Compatibility

Compatible with 24V versions of Sliding gate opener model

SLIDE series: SLIDE 843 / SLIDE 1043 (24V versions only)
TOWER series: TWB800 / TWB1000 / TWA800 / TWB1000

ACCESSORIES COMPATIBILITY:

DUCATI's rolling coded remote controls
key switch or and any switch button / loop detector with NO contact (normally open contact)
12V photocells NC contact
12/24V 10W max bulb blinker
External aerial antenna
CMBAT ( external module to connect emergency back-up battery / solar panel
12V battery: warning requires CMBAT + 12V battery ( note: in case of main ac power supply and power by back up battery, the 24V motor versions will work at slow speed only)
12 V min. 210W photovoltaic solar panel (12V motors only)
GSM 996 module to operate your gate by mobile phone
GSM INTERCOM 1096 for both intercom communication directly on your mobile phone and to operate your gate by mobile phone)

MOTOR COMPATIBILITY:

DUCO SAFE technology Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells are an optional accessory that can be added to prevent scratches to the painting of vehicles crossing while gate is closing. In compliance with EN norms EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 200

SOFT STOP

The opener stops in both directions decreasing the speed and avoiding unwished banging closing.
This prevent from usury and ensure long life to your opener and door.
This function prevents the door banging closing

ASR (Automatic Reversal System)

Thanks to the integrated amperometrical detection system and direction sensor, the opener is provided with an automatic reversal system in case the gate reaches an obstacle, the opener stops immediately and reverses automatically. Highest safety is ensured.

Features

Features double speed with SOFT STOP. This feature is very important to guarantee an optimal motion control and a gentle stop. Ideal for very heavy or highly sliding gates, controls the force of inertia of the gate, preventing kickback.
Stand-buy consumption: 0,014A only.
Can work independently in case of power failure: by adding the external battery charger module CMBAT* and a 2x 12V battery*. (* optionals)
Can be also powered by solar panel by adding 1 module CMBAT* + 2x 12A 12V batteries in series connected (BAT1212)+ 1 solar panel 24V min. 20W*(SOLAR2024)
Features 2 working mode options: Automatic closing with adjustable time (you can vary the pause time from 1 to 100 seconds) or step-by-step ( push to open & push to close)
Easy self-storing of the remotes controls by pushing one button
Adjustable motor power/ obstacle detection sensibility. By decreasing the power the gate opener will be more sensible in case of impact on an obstacle. The adjustment is very easy: just need to rotate potentiometer related to each motor.
Pedestrian opening (1 partial opening of one wing to allow the pedestrian crossing only) this feature can be controlled by remote control or switch button
CE conformity: product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request.
Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells are an optional accessory that can be added to prevent scratches to the painting of vehicles crossing while gate is closing. In compliance with EN norms EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)
Totally in house designed software and hardware are focused on reduce energy consumption and with attention to the absolute reliability using innovative components of the latest generation as our High quality radio receiver hybrid
Ducati chooses to use toroidal transformers only to achieve maximum reliability and safety by power surges and ESD. Our Standard 230V-50Hz transformer is also available in 110V/60Hz version.

Technical Data

CTH43V (12/24V) ELECTRONIC BOARD TECHNICAL DATA

Main AC power supply	230V (110V on demand
System Operating Voltage	24V or 12V
Backup-up battery & power supply	√ with CMBAT
Solar module power supply	√ (12V motor version only)
Stand-by consumption	0.012A
Protection fuse on board	√
Transformer protection fuse	0.8A T ( 1.2A T)
Toroidal transformer wattage	105W
Radio receiver	2 channels rolling code
Radio codes storage capacity	10
Radio transmission protocol	DUCATI rolling code 433MHz
Radio remote codes learning	self-learning
On board antenna	√
Input external antenna	√
Automatic closing pause time	√ adjustable by trimmer 1-100 sec
DUCOSAFE Safety obstacle detection system (entrapment protection)	√
Motor power adjustment by potentiometer	√
ARS automatic reverse system on obstacle detection	√
SOFT STOP Double speed with soft stop	√
FAST extra speed motor	√
Electric Limits	√ magnetic
Safety photocells input	√ NC contact
START operating cycle (full cycle) contact	√ NO contact
START operating cycle (pedestrian cycle) contact	√ NO contact
Blinker output	12V/24V 10W max
Battery charger	not on board (requires CMBAT)
Battery input	not on board ( requires additional CMBAT)
output for optional additional back-up battery charge management & module CMBAT	√
Low battery indication by flashing light blinker	-
Solar panel input *	compatible with 12V motors only (requires additional CMBAT)
LED to indicate power ON	√

Description

Compatibility

Features

Technical Data

Manual

Sliding gate opener's spare parts

R70

R403 USA (110V)

TRASFO230-105VA 0-12-24 UE

CTH43V (12/24V)

R40

SLIDE-LOCK

R39 SLIDE-24V-500W

PL2142

PL2141

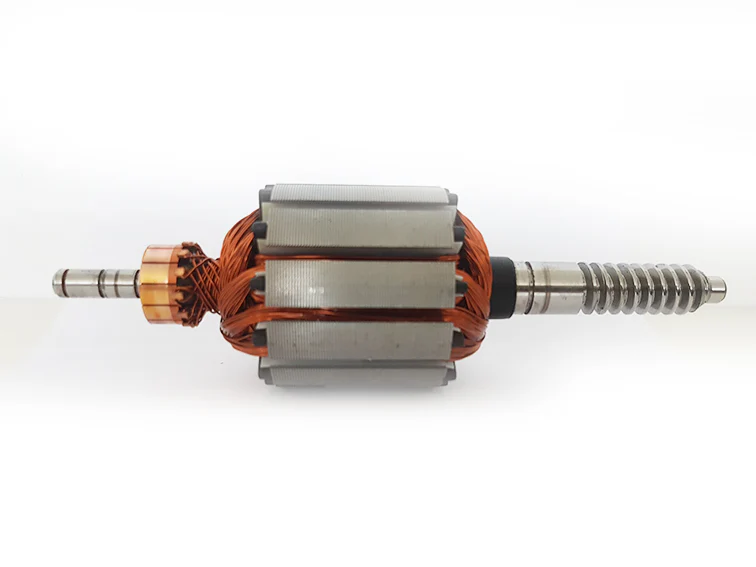

R39 SLIDE-12V-standard

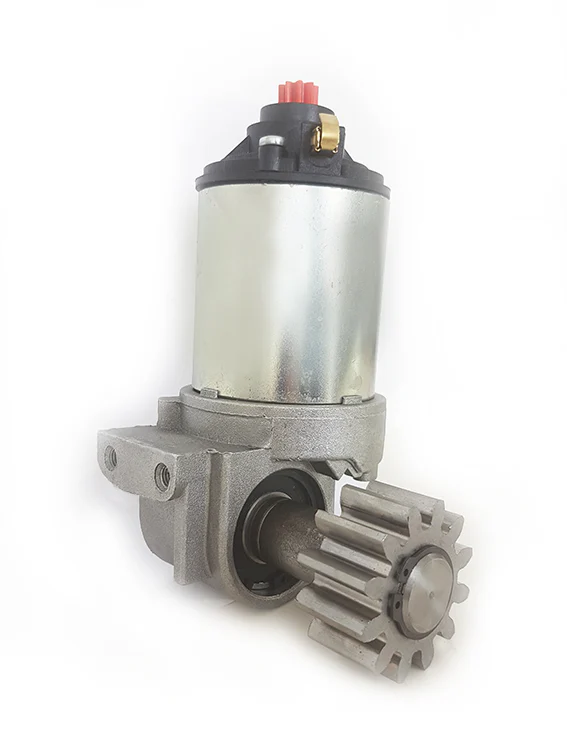

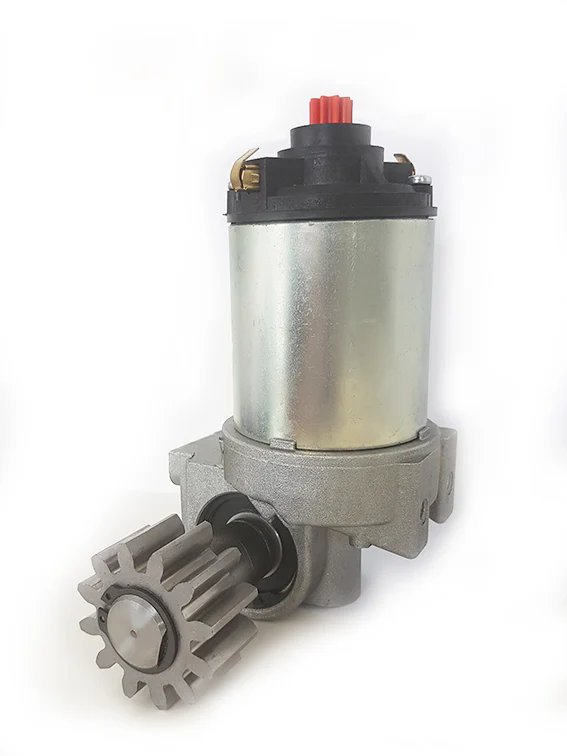

R76 SLIDE-24V-500W

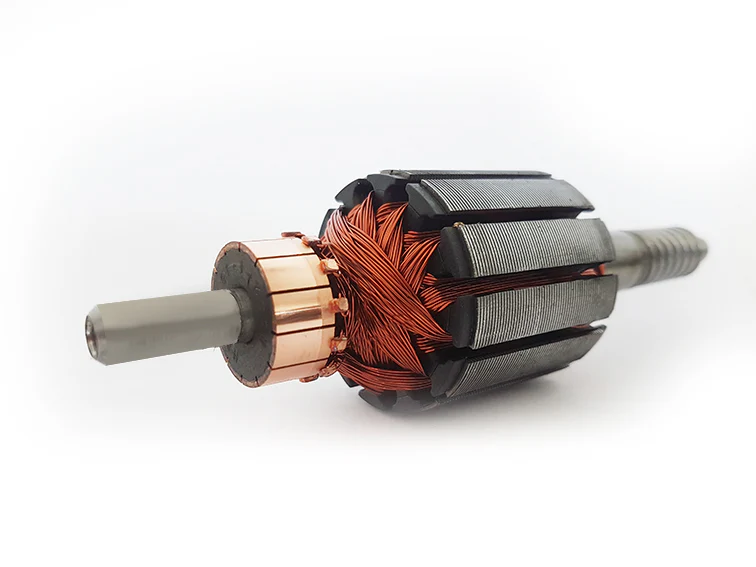

R39 SLIDE-24V-300W
